Product Features
- Manual hydraulic pump allows easy height adjustment without an external power supply, making the ramp ideal for locations without electricity.
- Heavy-duty front support legs provide enhanced stability and safety during loading and unloading operations.
- Ideal for outdoor and temporary loading areas, especially facilities without a fixed loading dock.
- High-strength diamond mesh steel deck offers excellent load-bearing capacity, outstanding slip resistance, and long-term durability without deformation. It also provides superior forklift traction and maneuverability, ensuring safe operation even in rainy or snowy conditions.
Product Specification
|
Specification |
Details |
|
Load Capacity |
6 t / 8 t / 10 t / 12 t (Custom capacities available) |
|
Overall Length |
10.5–12 m |
|
Platform Size |
10.5 × 2.0 m |
|
Ramp Width |
1.73–2.2 m |
|
Height Adjustment |
1,200 mm base height, adjustable by 300–600 mm |
|
Deck Material |
High-strength diamond mesh steel deck |
|
Frame Material |
Heavy-duty #18 manganese steel frame |
|
Construction |
Welded structural steel |
|
Customization |
Available upon request |
Custom Services
Weilin Qinli dock levelers are fully customizable to meet the specific requirements of your loading operations. Key specifications—including load capacity, platform dimensions, deck length, and height adjustment range—can be tailored to suit your facility layout and operational needs.
Designed for efficient and safe loading and unloading, our customized dock levelers are ideal for logistics centers, warehouse loading docks, freight terminals, ports, cold storage facilities, and distribution centers, delivering reliable performance across a wide range of material handling applications.
Product Applications
Mobile Loading Ramps provide flexible loading and unloading solutions where fixed loading docks are unavailable. They are suitable for:
- Outdoor Loading Areas
- Temporary Warehouses
- Logistics Yards
- Industrial Plants
- Container Yards
- Construction Sites
- Agricultural Facilities
- Ports
- Freight Stations
- Rental Equipment Projects
Typical Applications:

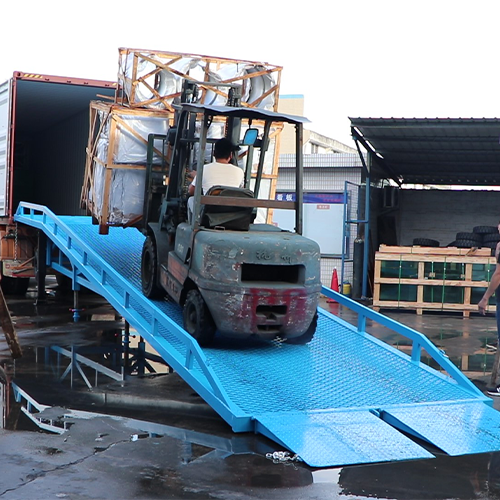

- Forklift access to containers
- Truck loading and unloading
- Outdoor cargo handling
- Temporary logistics operations
- Multi-location loading
FAQ
Q1: What is a mobile loading ramp used for?
A1: A mobile loading ramp allows forklifts to access containers or trucks directly without the need for a permanent loading dock.
Q2: Does it require an external power supply?
A2: No. Standard models use a manual hydraulic pump for height adjustment, while electric hydraulic options are also available.
Q3: Can one person operate the ramp?
A3: Yes. The ramp is designed for easy operation and can be adjusted and positioned by a single operator.
Q4: How long does installation take?
A4: Installation time depends on the equipment size and site conditions. Standard hydraulic cargo lifts can typically be installed within 3–7 days after the site is prepared. Our engineering team will provide detailed installation guidance, and overseas installation support is available upon request.
Q5: What after‑sales service do you provide?
A5: We provide comprehensive after‑sales support, including technical consultation, installation guidance, maintenance assistance, spare parts supply, and online troubleshooting. All equipment is backed by a 1‑year machine warranty, and our technical team is ready to provide prompt support whenever needed.
